ULTRARAM™ is an emerging charge-based memory that is non-volatile whilst also having ultra-low-energy logic-state switching.1,2 These seemingly contradictory properties are achieved by a triple-barrier resonant tunnelling (TBRT) structure, which utilises the extremely large InAs/AlSb conduction band offset (2.1 eV). Much like flash memory, ULTRARAM™ uses a floating gate to store charge, with non-destructive read of the logic state by a proximate channel. However, due to the TBRT structure only 2.5 V is required to program/erase, which is an order of magnitude lower than flash. Switching times and endurance are predicted to be similar to DRAM. ULTRARAM™ has many potential applications including conventional computing (large-scale and personal), artificial intelligence and the internet-of-things. However, for these to be realised, low-cost mass production must be achieved, necessitating growth on 300-mm Si substrates. Growth of III-V’s on Si presents challenges related to differences in lattice constant, thermal expansion coefficients and the polar/non-polar interface. These degrade epilayer quality due to the formation of threading defects and anti-phase domains.3

Here we report on recent progress on the growth of the III-V ULTRARAM™ on Si substrates by molecular beam epitaxy (MBE). A high-quality GaSb surface is required prior to deposition of the In(Ga)As and AlSb memory epilayers. Several growth techniques, including migration-enhanced epitaxy, interface-misfit epitaxy and two-step temperature growth were used to form two different buffer structures on 4˚ offcut substrates: (A) GaSb/GaAs/Ge/Si, where the Ge layer was deposited by chemical vapour deposition, and (B) GaSb/AlSb/Si, where all layers were grown by MBE. A comparison of these buffer layers, as well as a GaSb/GaAs control sample, is shown in the table below. The GaSb/AlSb/Si buffer was found to have the highest quality surface, exceeding that of the control sample grown on GaAs, and was used for growth of the full memory structure (TEM images below). This material has been processed into the first ULTRARAM™ memories on Si, with testing currently underway.

Materials Challenges for Memory

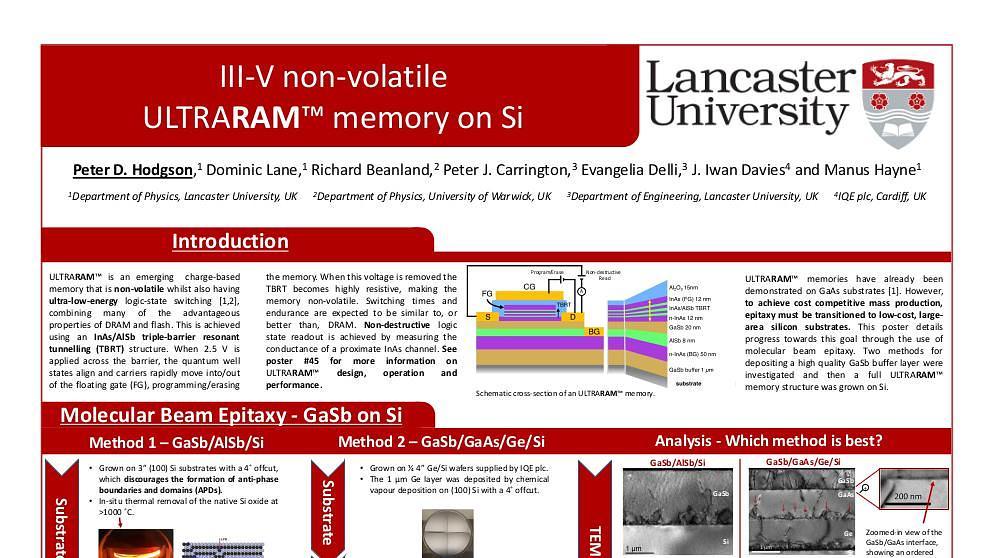

III-V non-volatile ULTRARAM™ memory on Si

non-volatile

charge-based

ultraram


![](https://assets.underline.io/uploads/markdown_image/1/image/2e10c515564e9ec3287ee4c664011c20.png)
