In this work, 15 kV 4H-SiC Split-Gate Vertical Planar MOSFETs (SG-MOSFET) are demonstrated for the first time. Both the traditional MOSFET and SG-MOSFET were fabricated on the same 6-inch SiC wafer and achieved maximum breakdown voltages (BV) of 15930 V and 15080 V, respectively. This is the first demonstration of the split gate architecture on SiC for voltage ratings above 10 kV, and this BV was achieved using a Hybrid-Junction Termination Extension (JTE) edge termination. The fabricated SG-MOSFETs showed a reduction in gate charge as well as no significant deviation in forward conduction and blocking behavior when compared to their MOSFET counterparts. These results display the SG-MOSFET’s potential for lower switching power losses in ultra-high voltage devices without compromising device static performance. In the following text, the layout, static performance, and gate charge of the MOSFET and SG-MOSFET are described to show the exciting potential of the high voltage SG-MOSFET.

Demonstration of High Voltage (15kV) Split-Gate 4H-SiC MOSFETs

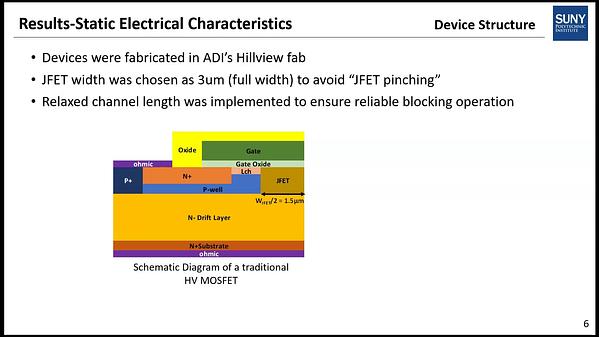

6.5 kV-rated 4H-SiC MOSFETs have been successfully fabricated and demonstrated on 60 µm-thick, 1.2×1015 cm-3 doped N-type epi-layer on 6-inch, 4H-SiC N+ substrates. Devices were fabricated at the 6-inch SiC foundry, X-FAB, TX, USA. Active and edge termination areas of high voltage (>3.3 kV) SiC devices require critical design consideration due to implant straggles from the low background doping concentration. Despite the fabrication and design challenges, we have demonstrated Ron,sp of 47 mΩ-cm2 with a breakdown voltage of 7.9 kV with a very low leakage current using ring-based edge termination structure. Devices were then diced and packaged in a SUNY Poly’s custom-made package to evaluate short circuit capabilities. Short circuit withstand time of 6.2 µs was recorded from the nominal device, along with 7 µs and 13 µs from the device with narrower JFET width and wider channel length, respectively.

Critical Design Considerations for Static and Dynamic Performances on 6.5 kV 4H-SiC MOSFETs Fabricated in a 6-inch SiC Foundry

This presentation reports the experimental results of the fabricated 4H-SiC Lateral Junction Field Effect Transistor (LJFET) and cell-to-cell integrated Lateral Bi-directional JFET (LBiDJFET). It was found that the reverse conduction characteristics of SiC LJFET were better than the forward conduction characteristics in terms of on-state resistance. The conduction mechanism of LBiDJFET can be described by the series connection of the forward and reverse conduction of LJFETs. This intriguing behavior of the cell-to-cell integration approach is promising because it can greatly reduce the wafer area consumed while achieving the bi-directional functions.

Demonstration of Cell-to-Cell Integrated 4H-SiC Lateral Bi-Directional Junction Field Effect Transistor (LBiDJFET)
